ZERO˚DRIVE
Experience the Next Generation
in Socket Wrench Technology

ZERO˚ PLAY | ALWAYS ENGAGED


Why ZeroDrive?
Superior
Operation
The ZeroDrive clutch roller design positively engages immediately in the drive direction, providing an instant grip and no slop.
Superior
Durability and Strength
Laboratory tested and evaluated with no detectable damage or wear after 50,000 strokes under load in both directions and failure torques 164+% of ASME standards.
Comparable high-end ratchet socket wrenches fail with badly worn teeth and severe slippage after only 27,300 strokes under load.
Superior
Performance
Extremely effective in tight area, with less than 1° of arc, compared to ratchet gear socket wrenches that have an average of 5° to 12° degree swing arc.
Independently field-tested to be an average of 30% faster in tightening and loosening due to free play and more swing arc in tight places.
Titanium
Tuff®
Proprietary Titanium Fusion Impregnation Plating
Strengthens the tools outside surface from dents and scratches
Strengthens the tools integral steel working parts for longer wear and smoother performance
Eliminates corrosion from acids and salts
Long lasting lustrous gold-colored finish
Free wheeling movement provides more control and more precise feel
Free wheeling movement prevents having to hold the socket when starting or working with loose bolts
Patented
Mag-Drive™
Technology
Magnetic drive direction selector provides smooth operation allowing for finger only direction changes on all sizes of wrenches
Superior
feel

Technology

Selector
Magnets
Rollers
Collector
TiN impregnated bore

Patented
The ZeroDrive wrench is designed to use a hexagonal inner cam/driver that is integral with the square socket drive.
The cam/driver is surrounded by six cylindrical rollers that are, in turn, enclosed by a hardened cylindrical race that is machined into the forged high quality tool steel handle.
Patented titanium nitride impregnation and plating of the bore and handle provides and exception wear surface greatly extending the life of the tool.
Patented magnetic technology use magnets hold the selector in position and two snap rings retain all of the components in the pocket in the head of the handle.
The roller clutch design uses cam rollers in place of teeth to provide a ZeroDegree® swing arc, a ZeroDegree® back-drive, significantly longer tool lifetimes, and greater than ASME strength.

Performance
Cycle Testing Results
Driver Size | Cycles Tested | Applied Torque (lbf-in.) | Comment |
---|---|---|---|
1/2" | 5,000 | 900 | No failure |
3/8" | 50,000 | 360 | No failure |
1/4" | 50,000 | 90 | No failure |
Minimum Proof Torque and
Failure Torque Testing Results
Driver Size | Required Minimum Proof Torque (lbf-in.) | Applied Torque at Failure (lbf-in.) | Percent of Required Torque |
---|---|---|---|
1/2" | 4,500 | 6,706 | 167% |
3/8" | 1,800 | 2,700 | 167% |
1/4" | 450 | 699 | 164% |
Cycle and Proof Torque Testing
Cycle and Proof Torque testing per ASME B107.110-2012 on 1/4”, 3/8” & 1/2” drive ZeroDrive ratchets.
One ratchet of each size was cycle tested per paragraph 10-3.10 which includes proof torque testing after completion of cycle testing.
Cycle testing was conducted by applying a repeating load at the midpoint of the grip section for each ratchet at a frequency of 1 Hz.
After cycle testing the ratchets were subjected to Minimum Proof Torque testing and then loaded to
failure.

For the Professional
ZERO˚ PLAY | ALWAYS ENGAGED

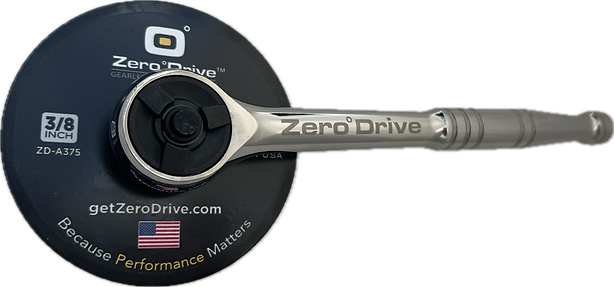

The ZeroDrive professional socket wrench is designed for the daily use professional.
-
Immediate engagement
-
High strength tool steel for strength and durability
-
All metal construction for exceptionally long life
-
MagDrive magnetic drive selection for smoother feel
-
Titanium Tuff Titanium Nitride plating of bore and handle for exceptionally long life
-
Lifetime warranty through ZeroDegree Tools

Warranty
ZeroDrive is covered by a full lifetime warranty when used properly.
Simply contact us and we will refund or replace.
